Kooltronic Enclosure Air Conditioners

kooltronic
Wayne Products has distributed Kooltronic Air Conditioners, manufactured nearby in Pennington, NJ, for over 20 years. Kooltronic air conditioners come in many sizes but are all of the highest quality, designed for harsh industrial environments. Many models are stocked.

Kooltronic is available in sizes that range from 1,000 to 26,000 BTUs in a variety of models - click here for a quick guide that you can download and review.

We request that you contact us by telephone (see number above) or email us to discuss the information needed to select the proper unit for your needs. Thank you for your understanding!

Reasons to consider buying a Kooltronic Air Conditioner...

  • They have a one-man patented mounting system that saves on installation cost!
  • All models are UL/CUL listed or recognized.
  • Built-in Condensate Evaporator eliminates need for draining condensate!
  • Thermostatic Low Temperature Control prevents overcooling and provides energy efficient operation!
  • EMI/RFI Suppressor minimizes transient line spikes during on/off cycling!
  • Field reversible condenser outlet blower provides choice of horizontal or vertical air discharge!
  • Air and water-cooled models!
  • Heavy-duty steel enclosures with powder-coated finish!
  • 6 ft. SJT wire power cord.
  • Stocked units ship in 5 days.

Model Types kooltronic1

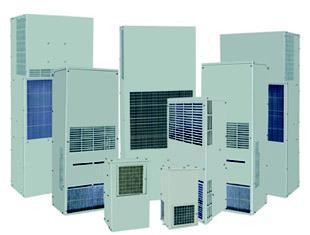

Guardian Series

All Guardian units maintain NEMA 12, 3R, & 4 ratings and consist of units with heights from 15 to 60 inches.

Eight Guardian models are available from 1,000 to 26,000 BTU/H. All have epoxy-coated condenser coils & tubing, offering security by providing an operating environment safe from harsh ambient conditions.

An excellent choice for telecommunications, food & beverage processing, and other challenging applications!

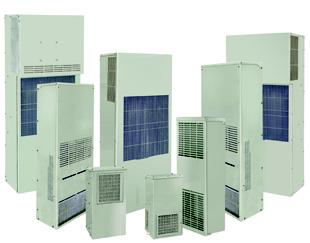

GuardianX Serieskooltronic2

All GuardianX units are similar to Guardian units, but are designed specifically for NEMA 4X enclosure applications, equipped standard with a stainless steel shell and internal corrosion protection.

Eight GuardianX models range in height from 15 to 60 inches and are available from 1,000 to 26,000 BTU/H. All have epoxy-coated condenser coils & tubing, offering security by providing an operating environment safe from harsh ambient conditions.

An excellent choice for telecommunications, wastewater, food & beverage processing, and other challenging applications!

MODEL NUMBERS FOR GUARDIAN AND GUARDIANX ARE THE SAME – THE ONLY DIFFERENCE IS THE SS SHELL AND CORROSIVE INTERIOR

Guardian or GuardianX Model Unit

UnitDepthWidthHeightBTU/H
DP15  15 1,000
DP21 10  12 21 3,000
DP33 11 17 33  5,000
DP43 10  17  45 7,000
DP47 10  17  47  9,000
DP50 12 20  50 14,000
DP53 13  24  53  18,000
DP60 13 24  60 26,000

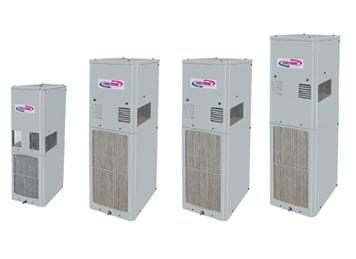

SlimKool Serieskooltronic3

All SlimKool units are used both indoor & outdoor for shallow electrical enclosures, which are common in the industry today. All SlimKool units are compact with 11.75” widths and 15.1” depths, ranging in height from 28 to 43 inches.

Six SlimKool models range from 4,000 to 11,000 BTU/H. All have epoxy-coated condenser coils & tubing, offering security by providing an operating environment safe from harsh ambient conditions. All are available in 115, 230, and 480V and are rated NEMA 12, 3R, and 4. NEMA 4X protection is available with a SS shell.

UnitDepthWidthHeightBTU/H
SP28 13  12 28 4,000
SP28-480 13 12 28 4,000
SP36 15 12 36 8,000
SP36-480 15 12 36 8,000
SP43 15 12 43 11,000
SP43-480 15 12 43 11,000
